We are a universal joint coupling manufacturer in Mumbai, India. Our provided couplings are made in accordance with market standards and are known for their erosion resistance, high resilience, precise toughness, and excellent product quality.
Our Universal Joint Couplings are highly praised by many in the industry for their durability, toughness, and resistance to erosion. We offer these high-quality couplings to clients both in India and internationally. Our team ensures quick delivery at very affordable prices.

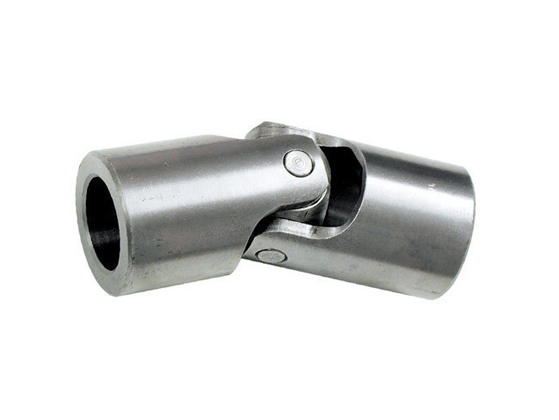

TYPE - SJ
Universal Joints Coupling are a simple and cost-effective way to connect two shafts whose axes are inclined at an angle. They can also be used when the angle varies during rotation which eliminates the need for more complex and expensive mechanisms that are typically associated with this type of application.

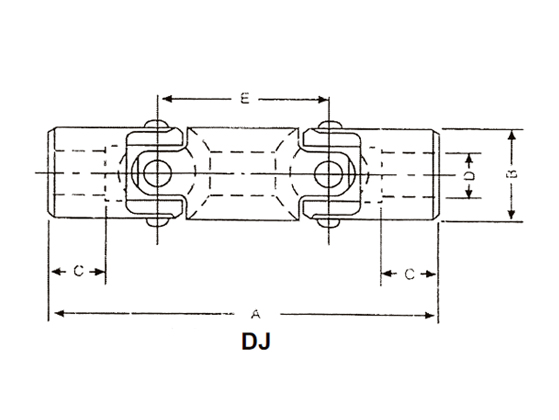

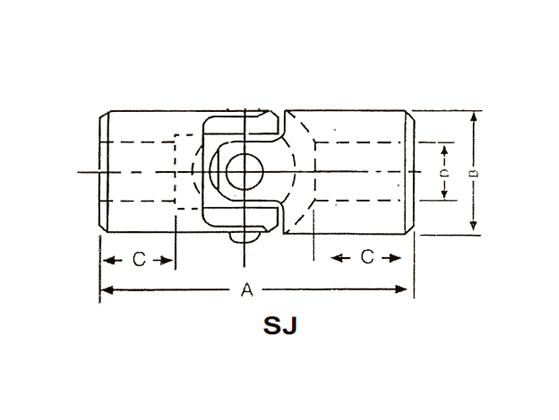

Rating and Dimensions
| MODEL NO. | B | A | BORE SIZE | C | N.m. | MODEL NO. | B | A | BORE SIZE | C | E | N.m. | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Single Joint | STANDARD | WITH KEY WAY | Double Joint | STANDARD | WITH KEY WAY | |||||||||
| SJ 1 | 9.5 | 44 | 6 | - | 13 | 21 | DJ 1 | 13 | 71.5 | 8 | - | 15 | 21 | 44 |
| SJ 2 | 13 | 50 | 8 | - | 15 | 44 | DJ 2 | 16 | 81 | 10 | 7.5 | 16 | 25 | 75 |
| SJ 3 | 16 | 58 | 10 | 7.5 | 17 | 75 | DJ 3 | 19 | 91 | 12 | 8.5 | 19 | 27 | 89 |
| SJ 4 | 19 | 64 | 12 | 8.5 | 19 | 89 | DJ 4 | 22.5 | 111 | 14 | 11 | 21 | 35 | 135 |
| SJ 5 | 22.5 | 76 | 14 | 11 | 21 | 135 | DJ 5 | 22.5 | 122 | 16 | 12 | 25 | 36 | 193 |
| SJ 6 | 25.5 | 86 | 16 | 12 | 25 | 193 | DJ 6 | 29 | 133 | 18 | 14 | 26 | 43 | 331 |
| SJ 7 | 29 | 90 | 18 | 14 | 26 | 331 | DJ 7 | 32 | 143 | 20/22 | 16 | 26.5 | 48 | 600 |
| SJ 8 | 32 | 95 | 20/22 | 16 | 26.5 | 600 | DJ 8 | 38.5 | 162 | 25 | 19 | 30 | 54 | 910 |
| SJ 9 | 38.5 | 108 | 25 | 19 | 30 | 910 | DJ 9 | 44.5 | 194 | 30 | 22.5 | 34.5 | 67 | 1230 |
| SJ 10 | 44.5 | 127 | 30 | 22.5 | 34.5 | 1230 | DJ 10 | 51 | 218 | 35 | 27.5 | 38 | 78 | 1790 |
| SJ 11 | 51 | 140 | 35 | 27.5 | 38 | 790 | DJ 11 | 57.5 | 245 | 40 | 32 | 47.5 | 80 | 2850 |
| SJ 12 | 57.5 | 165 | 50 | 32 | 47.5 | 2860 | DJ 12 | 63.5 | 264 | 45 | 36.5 | 50 | 89 | 3810 |
| SJ 13 | 63.5 | 178 | 45 | 36.5 | 50 | 3810 | DJ 13 | 76.5 | 318 | 50 | 44.5 | 56 | 96 | 7510 |
| SJ 14 | 76.5 | 222 | 50 | 44.5 | 66 | 7510 | DJ 14 | 89 | 365 | 65 | 53 | 78 | 111 | 11010 |
| SJ 15 | 89 | 254 | 65 | 53 | 78.5 | 11010 | DJ 15 | 102 | 410 | 70 | 62 | 94 | 118 | 15850 |
| SJ 16 | 102 | 292 | 70 | 62 | 94 | 15850 | - | - | - | - | - | - | - | - |
